Apex Metal Garage 488 - Double Door, Galvanized Steel

Summary:

These great value metal garages are approximately 10'x16', 10'x20' or 13'x20' with an attractive grey coloured external finish. Heavier than most other comparable metal garages, all framing and cladding is hot dip galvanized steel. The cladding is also resin coated on both sides. Strong foundation rails are included as standard. Large hinged double doors provide the main access to the garage with a clear opening size of approximately 6'11" wide x 6'1" high (2120mm wide x 1860mm high) on the 10' wide garages and approximately 9'5" wide x 6'6" high (2880x1970mm) on the 13'x20' garage. A single hinged personnel door is also supplied. The strong roof structure features substantial rafters along with 2 sturdy internal support frames with vertical stanchions and roof trusses with diagonal struts and braces. All fixings and instructions are included. Options include a unique choice of base options and a selection of base anchor. Available accessories include shelves, tool racks and tool hooks.

LIMITED STOCK - SELLING FAST!

The prices include courier delivery in mainland England, Wales and southern Scotland. Elsewhere delivery is a few days slower at extra cost. You can choose delivery on any weekday. All fixings and instructions are included.

Size	Grey Paint Finish	Pressure treated timber base kit	Heavy duty pressure treated timber base kit	Plastic base kit
9'10" x 16'3"	£1,099	+£359	+£449	+£599
9'10" x 19'9"	£1,299	+£419	+£519	+£709
12'8" x 19'9"	£1,549	+£519	+£669	+£855

Specifications

Hot dip galvanized steel framing
Hot dip galvanized steel cladding panels with a tough epoxy resin coating inside and out
Attractive grey colour to external cladding
Contrasting colour to gable fascias and door frame trims
Double hinged doors with key locking hasp and staple - fixings are concealed when shut for greater security
Vertical, horizontal and diagonal door framing
Single hinged personnel door with key locking hasp and staple - fixings are concealed when shut for greater security
Personnel door must be placed in the right hand side wall (viewed from the front)
Personnel door size approximately 2'7" wide x 6'1" high (780x1860mm)
Cladding sheets are corrugated and ribbed for extra strength
Corner cladding sheets are folded ninety degrees and overlapped to provide a strong and waterproof corner joint
Horizontal framing
2 sturdy internal support frames with vertical stanchions and roof trusses with diagonal struts and braces
Main ridge beam
Intermediate roof purlins
Foundation rails
Corner brackets
External ridge cover
4 louvred ventilators are fitted to the front and rear gables for improved ventilation
This garage is easy to deliver if access is restricted - all sections are designed to pass through a normal single door

10'x16' Garage

External roof size 9'10" wide x 16'3" deep (3000mm x 4950mm)
External cladding size approximately 9'6" wide x 15'10" deep (2890mm x 4820mm)
Main door clear opening size approximately 6'11" wide x 6'1" high (2120x1860mm)
Eaves height approximately 6'4" (1920mm)
Ridge height approximately 7'7" (2320mm)
Overall weight 183kg

10'x20' Garage

External roof size 9'10" wide x 19'9" deep (3000mm x 6020mm)
External cladding size approximately 9'6" wide x 19'4" deep (2890mm x 5900mm)
Main door clear opening size approximately 6'11" wide x 6'1" high (2120x1860mm)
Eaves height approximately 6'4" (1920mm)
Ridge height approximately 7'7" (2320mm)
Overall weight 221kg

13'x20' Garage

External roof size 12'8" wide x 19'9" deep (3860mm x 6020mm)
External cladding size approximately 12'4" wide x 19'4" deep (3760mm x 5900mm)
Main door clear opening size approximately 9'5" wide x 6'6" high (2880x1970mm)
Eaves height approximately 6'8" (2020mm)
Ridge height approximately 7'9" (2370mm)
Overall weight 300kg

GALVANIZED STEEL CLADDING: These great value buildings are made with galvanized steel throughout. All framing and cladding is hot dip galvanized steel. This is a process by which steel is coated with zinc to protect it from corrosion. The cladding is subsequently coated with epoxy resin, partly to protect the zinc coating itself and partly to add colour. The factory finish is described as primer although a top coat is not normally needed. The combination of a zinc coating with epoxy resin provides durable protection even if the surface is scratched.

STRONG FRAMING: In common with all other steel buildings, including even the largest sports stadia, retail superstores and warehouses, steel cladding sheets are surprisingly thin. The strength of steel buildings is provided by the frame, although the corrugations of the cladding sheets do provide a degree of extra strength. These metal sheds feature strong galvanized steel framing members and the completed frame is rigid.

FREE CORNER BRACKETS: Corner brackets are recommended for any metal building which is subject to frequent use or sited in an exposed area. The corner brackets strengthen the corners and also make it easier to fix your building down into a solid base. The kit includes 4 galvanized steel corner brackets. Screws are included to fix the brackets into the foundation rails. Screws and nylon plugs are also supplied for fixing into bricks, concrete or paving slabs.

HEAVY PACKS: As a rough and ready rule, the heavier a metal building is the stronger it is. Our buildings are heavier than most similar metal buildings which is why we publish the weight. The packs are very heavy but surprisingly compact, especially the cladding sheets which are packed tightly together.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external sizes are listed alongside the price. The sizes listed alongside the prices are the external roof sizes. The external wall sizes may be smaller. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. All sizes are approximate.

Options

Timber base kits - overall base sizes 9'10"x16'5" (3000x5000mm), 9'10"x19'8" (3000x6000mm) or 13'1"x19'8" (4000x6000mm)
Plastic base kits - overall base sizes 10'1"x16'5" (3080x5005mm), 10'1"x20'3" (3080x6160mm) or 13'1"x20'3" (3850x6160mm)
Concrete hammer fixings
Galvanized steel shelves
Galvanized steel tool racks
Galvanized steel double tool hooks
Solar powered lights

TIMBER AND PLASTIC BASE KITS: Our easy to install base kits feature a choice of timber or plastic pavers. The pavers can be laid directly on concrete, paving or decking. The finished base is a few inches larger than your shed. No part of the shed is in direct contact with the ground and valuable items such as lawnmowers and steel tools are stored off the ground. This prolongs the life of your shed and the contents. Our optional fixing packs include suitable screws to fix the foundation rails of your shed firmly into the base. If your pavers are laid on concrete or paving we also recommend our optional hammer fixings.

PRESSURE TREATED TIMBER BASES: These easy to install timber decking tiles feature boards with a reeded surface finish and a small gap between each board to allow for expansion and contraction of the timber and drainage. All timber is pressure treated, a lifetime preservative treatment. Unlike slabs or concrete these deck tiles are lightweight and fully relocatable. Boarding or matting can be laid over the tiles if a smooth floor is required. Each paver is 500mm x 500mm with 14mm thick decking boards, approximately 21mm gaps and 28x12mm joists (finished sizes after machining).

PLASTIC BASES: Our durable and self draining eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Unlike paving or concrete our plastic bases are fully relocatable. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. The interlocking design combines the weight of the contents with the weight of your shed to enhance the stability of the structure. It is not recommended to use a car jack on the pavers or similar tasks which would focus a heavy weight on a small surface area.

BASE FIXING KITS: Our optional base fixing kits include sufficient screws to fix the foundation rails of our metal sheds to a plastic or timber base. The screws supplied are longer, wider and stronger than the screws supplied with the shed. The design of the screws also ensures a tighter fit and a more secure fixing.

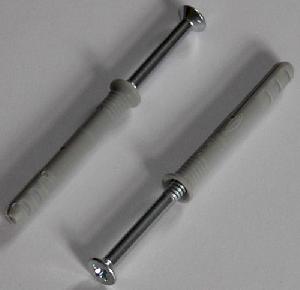

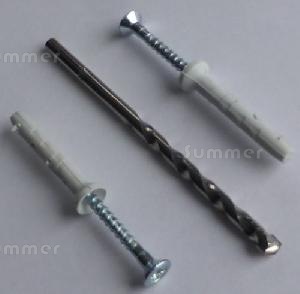

CONCRETE HAMMER FIXINGS: We recommend hammer fixings for any metal building which is sited on a solid base of concrete or paving to ensure that it is securely fixed down. The pack includes sufficient hammer fixings to fix the pre-drilled foundation rails into the base. The fixings are drive in hammer screws with a nylon sleeve. A masonry drill bit is also available as an option if required. Drive in hammer fixings are simple to use. First the hole is drilled in the masonry and then the fixing is hammered home. If required the screw head allows easy removal with a screwdriver.

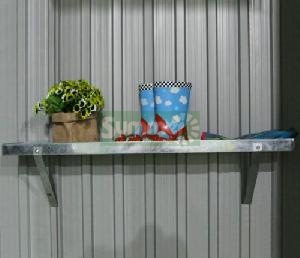

SHELVES: Each shelf is 2'7" long and 8" wide (800mm x 200mm). Each kit includes a galvanized steel shelf, supplied complete with shelf brackets and fixings.

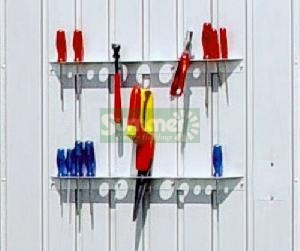

TOOL RACKS: Supplied in pairs, each kit includes 2 galvanized steel tool racks, each 2'4" long (700mm). Each tool rack has 24 holes and slots punched in a variety of sizes and 6 useful hooks. The maximum storage capacity for each kit is therefore 60 tools or similar items. The racks can be fixed to the internal wall cladding.

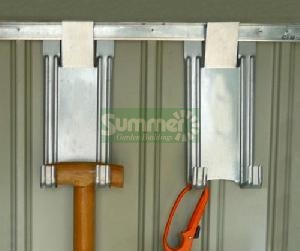

JUMBO TOOL HOOKS: Each set includes 4 heavy duty galvanized steel double tool hooks. These jumbo tool hooks are 215mm high and 110mm wide (8"x4"). No fixings are needed. Installation could not be easier. Just hang the tool hooks over the horizontal framing inside your building. You can relocate the tool hooks at any time with equal ease.

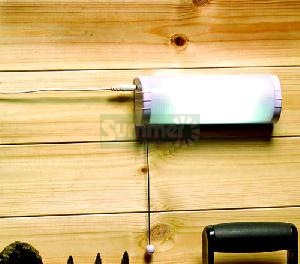

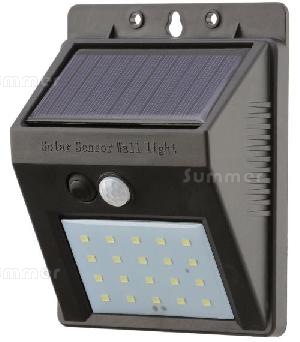

SOLAR POWERED LIGHTS: These ingenious and affordable solar powered lights are easy to install with no mains wiring and they cost nothing to run. During the day the externally mounted solar panel converts daylight into electricity and recharges the batteries. The solar panel is weatherproof and suitable for outside use. It is normally positioned high on the walls of your sectional garage or on the roof. Our solar internal lights solve the problem of seeing inside your sectional garage at night. Our solar security lights illuminate the approach to your sectional garage at night and may also deter burglars. After dusk the passive infra red movement detector switches itself on when it detects movement. The more expensive solar lights are brighter and stay on for longer.

Delivery

FREE NEXT DAY DELIVERY or delay the delivery until you are ready then YOU TELL US WHICH DAY TO DELIVER
Please provide at least one DAYTIME PHONE NUMBER where you can be contacted during the daytime if needed.

DELIVERY OF 10x16 and 10x20 GARAGES:

This garage is delivered as a single pallet. The driver can unload it quickly and easily without assistance. Often the driver can wheel the pallet onto a level drive with a hard surface such as tarmac or block paving otherwise the delivery is kerbside. It is not normally possible to deliver the pallet into the back garden.
The pallet is strapped and sealed on delivery but after it is opened the individual components are easy to carry.
We can request that the driver try to call 30 minutes before delivery, but this can't be guaranteed.
If you cannot be at home to receive the goods, please contact us before dispatch to discuss options.

DELIVERY OF 13x20 GARAGES:

This garage is delivered as a single large pack to the kerbside and assistance is required to unload it quickly. Large pallets are often too big for most tail lifts and wider than the rear doors of the lorry. Although a skilled driver may occasionally angle a large pallet out, in most cases large pallets require unloading by hand, piece by piece. Two fit and strong people can normally unload this garage within 15-20 minutes.
The pallet is strapped and sealed on delivery but after it is opened the individual components are easy to carry.
We can request that the driver try to call 30 minutes before delivery, but this can't be guaranteed.

ALL SIZES - TELL US WHICH DAY: You need to tell us which day to deliver. If you want fast delivery please select the earliest available day while ordering. If you did not select a delivery day and you want fast delivery please email us as soon as possible after ordering. If you are not ready for delivery you do not need to select a delivery day while ordering - you can request delivery later.

NEXT DAY DELIVERY: Next day delivery is included throughout mainland England, Wales, southern Scotland and central Scotland. We deliver on the next working day if requested before 10.00am. For example, to request delivery on Monday just contact us before 10.00am on Friday.

DELAYED DELIVERY: You can request a delivery day weeks in advance or you can wait to choose a delivery day later. We can deliver on any weekday of your choice, just email us before 10.00am on the working day before.

SCOTLAND: Next day delivery is available to all mainland addresses in DG, EH, FK, G, KA1-26, KA29-30, KY, ML, PA1-19 and TD postcodes. Delivery is normally within 5 working days to any other Scottish postcodes including mainland and offshore addresses.

OFFSHORE ISLANDS: Delivery is normally within 5 working days to the Isle of Wight, the Scottish Islands, the Isle of Man and the Scilly Isles. To see the correct prices click here to enter the FIRST HALF of your POSTCODE.

NORTHERN IRELAND: Unfortunately we're currently unable to deliver to Northern Ireland at present.

REPUBLIC OF IRELAND: Unfortunately we're currently unable to deliver to Republic of Ireland at present.

5 DAY DELIVERY: In some areas next day delivery is not possible. 5 day delivery is the only option in Northern Scotland, the Scottish Islands, the Isle of Wight, the Isle of Man, the Scilly Isles and the Channel Islands. In these areas the optional next day, Saturday and AM delivery options are not available.

AM DELIVERY: This low cost option is available at any mainland address in England and Wales. AM delivery is also available in Scotland to mainland address in DG, EH, FK, G, KA1-26, KA29-30, KY, ML, PA1-19 and TD postcodes. The AM delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. If your delivery is outside the specified time the charge will be fully refunded.

SATURDAY AM DELIVERY: This low cost option is available at any mainland address in England or Wales. Saturday AM delivery is also available in Scotland to mainland address in DG, EH, FK, G, KA1-26, KA29-30, KY, ML, PA1-19 and TD postcodes. The Saturday delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. To request delivery on Saturday just email us before 10.00am on Friday.

NO HIDDEN DELIVERY CHARGES: The price you see is the price you pay. Our sectional garage prices include all delivery charges - unlike many others we do not add delivery charges during the checkout process. However the prices may vary in different areas. You need to enter the first half of your postcode to see the correct prices in your local area. If you have not already done so click here to enter the FIRST HALF of your POSTCODE.

Ordering/Payment

All prices include VAT.

ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode.

METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.

SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.
