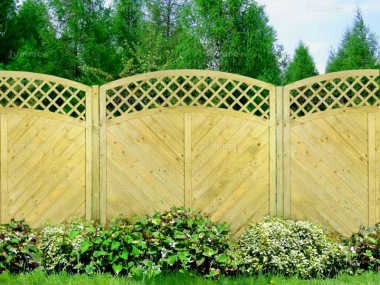

Fence Panel 517 - Planed Timber, 15mm T and G Boards, 3x2 Frame
- All timber used in the construction of this fencing panel originates from sustainable forests
- All timber is pressure treated (lifetime preservative treatment)
- North European deal
- Strong ex 3"x2" outer frame (finished size 70x38mm after machining)
- Smooth planed outer frame with rounded edges
- Morticed and tenoned outer frame corners for greater strength
- Smooth planed interlocking tongued and grooved boards
- Ex 5" wide boards (finished size 15x120mm after machining)
- Diamond trellis top feature with approximately 80x80mm diamond size
- During manufacturing each end of the boards are slotted into a groove in the outer frame, which ensures greater panel strength
- Arched top design
- Arches made with glued and laminated timber
- Stainless steel fixings
- Smooth planed timber throughout, which lasts longer than standard sawn timber
PREMIUM QUALITY DESIGNER FENCING PANELS - THE BENEFITS: These premium quality high specification fence panels are designed not only to look good but also to last longer than any other fencing panels. Quality features include thicker framing, thicker boards, stronger corner joints, more durable fixings and smooth planed timber. Standard fencing panels feature thin timber, crude construction and rough sawn timber. Although most designer fencing panels are a little stronger and better made, none come close to the superb specification of these heavy duty panels.
These premium quality panels feature a massive 3" thick frame (70x38mm), with strong morticed and tenoned corners. Most fencing panels do not include a properly jointed outer frame at all, but it is an important way to hold the panels together in extreme conditions. The boards are 15mm thick and fully interlocking tongued and grooved. The fixings are all stainess steel. In addition, the boards and framing are planed timber which lasts longer. Sawn timber has a rough finish which absorbs much more water and takes longer to dry. Planed timber is smooth so water drains quicker and the wood dries quicker.
PRESSURE TREATED TIMBER: Pressure treatment is a lifetime preservative treatment. The preservative is forced deep into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently bonded to the cell structure of the wood at a molecular level. Tanalith E is a widely used water based version so pressure treated wood is often described as tanalised. Pressure treated wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.
- Add any number of individual extra panels, as few or as many as you need, subject to a minimum order of 5 panels
- Pressure treated fence posts, smooth planed with rounded edges, in a choice of lengths
- A choice of fence post dimensions, either ex 3"x3" (finished size 70x70mm) or ex 4"x4" (finished size 90x90mm)
- A choice of post supports to suit 3"x3" or 4"x4" posts, including drive-in spikes, bolt down brackets and concrete-in stirrups
- A choice of post caps to suit 3"x3" or 4"x4" posts, either wooden or stainless steel
- Panel fixing clips
- A choice of single and double gates with a wide choice of widths, heights and styles
- Gate ironmongery packs, including hinges, bolts and latches
WOODEN FENCE POSTS: Pressure treated timber fence posts are available in a range of lengths to suit your needs. The wood is smooth planed throughout with rounded edges, partly to ensure extra durability but also to provide a more refined appearance than standard sawn posts. The posts can be set in the ground, normally in concrete, or you can use galvanized steel post supports. If you plan to set your posts in the ground we recommend posts at least 2' or 24" longer (600mm) than the fence height e.g. 6' high panel requires 8' long posts. However, for best results with 6' high panels we recommend longer 9' posts, which are 3' or 36" longer (900mm) than the fence height. Longer posts are also recommended at sites with a significant slope. If you plan to use steel post supports we recommend posts at least 1' or 12" longer (300mm) than the fence height e.g. 6' high panel requires 7' long posts.
The most popular post size for fencing is 3"x3" but we also offer 4"x4". That extra inch does not sound much but it is much stronger. We recommend 4"x4" posts at any exposed site, especially for 5' or 6' high panels. It is also worth considering 4"x4" if you are paying for professional installation. The cost of installing fence panels with 3"x3" or 4"x4" posts is exactly the same but the fence with thicker posts should last longer.
A CHOICE OF POST CAPS: Post caps are not only an attractive design feature but also an important way to protect your investment. The post caps cover and protect the exposed end of each post to keep the water out, which ensures greater durability. They are also a great way to enhance the appearance of your fence. We offer two distinct styles. You can choose either matching timber posts caps for a more traditional appearance or galvanized steel post caps for a more contemporary look. Our post caps all feature a decorative round ball which also discharges rainwater. The wooden post caps are larger in area than the posts to ensure an overhang. The ideal fixings are small and narrow lost head nails fixed from above at an angle. The galvanized steel post caps surround the top of the posts and are fixed from the side.
PANEL FIXING CLIPS: Our zinc plated steel panel fixing brackets are designed to fix our fencing panels securely, neatly and discreetly. The L-shaped design means that if all clips are fitted facing the same way, they are only visible from one side. Our fence panels are heavier than normal fencing panels so our clips are stronger. We recommend fixing 5' and 6' high panels (1.5m and 1.8m) using 6 clips per panel, with 3 clips each side. We recommend fixing 3' and 4' high panels (0.9m and 1.2m) using 4 clips per panel, with 2 clips each side.
GALVANIZED STEEL POST SUPPORTS: We offer a choice of different steel post supports to simplify and improve the installation process. Setting posts in the ground in the traditional way requires the excavation of deep holes. Care is also required when backfilling the holes. You can use wet concrete, dry lean mix concrete or compacted rubble. Concrete should be finished below ground level and chamferred away from the post at the top. At the bottom the post must penetrate below the concrete for drainage purposes. A degree of skill and effort is required and there is always the worry that posts set in the ground are more likely to rot over time. Posts set in our steel post supports should be set above the ground with little or no direct contact with the ground. We offer 3 types of steel fence post supports:
DRIVE-IN SPIKES: Short offcuts of wood are placed in the sockets and the spikes are driven into the ground with a sledgehammer. The offcuts should be about 8" long (200mm). You can use offcuts from the fence posts or any similar wood offcuts. This method can be very quick and easy, especially in softer soils. However, it can be harder in heavy clay or stony ground. It is not always as precise as other methods because a large stone below ground may deflect the spike slightly out of line. Professional fence erectors do not often use drive-in spikes which were developed for the DIY market. This is our most popular type of post support.
BOLT DOWN POST SUPPORTS: Bolt down post supports can save you a lot of work if your fencing passes over an area of existing concrete. Instead of breaking up the concrete or cutting a hole through it you can simply bolt one or two of these post supports directly into the concrete. 2 fixings are required per post support, on opposite sides, so you just need to drill a couple of holes. Although much easier to use these post supports are not as strong as the other options we offer, so we do not recommend fixing long runs of fencing this way. There are 2 slightly different types offered. The box shape socket surrounds the post to provide the strongest fix if this is your preference. The U-shape socket can be fitted with the flanges barely visible if this is you prefer.
CONCRETE-IN STIRRUPS: These concrete in stirrups or H-brackets are the best method we know of for installing fence posts, combining the best of the traditional way with the best of modern engineering. Professional fence erectors should be happy with this method although it may take longer. The bottom half of the stirrups are set in concrete which requires holes to be excavated, but the holes are not as deep as traditional post holes. The combination of concrete and thick steel is immensely strong. The top of the stirrup should be above the concrete. For greater precision the posts can be concreted as the posts are fitted. Alternatively, the stirrups can be concreted in advance, which is quicker but precise positioning is required. The uppermost flanges can be fitted in 2 different ways. At the most exposed sites the flanges should be front and back for maximum strength. At less exposed sites the flanges will be barely visible if they are fitted from side to side.
GATES: Our superb selection of great value single and double gates are available in a range of heights and widths to suit most requirements. Styles include palisade style gates with vertical pales, joinery gates with tongued and grooved boarding and gates to match your choice of fencing. Our deluxe gates are surprisingly affordable and feature joinery frames with comb jointed or morticed and tenoned joints. Ironmongery packs are available as an option.
- Delivery is normally between 6 and 9 weeks after order
- Our prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
- Please provide at least one DAYTIME PHONE NUMBER where you can be contacted during the daytime if needed.
- If you cannot be at home to receive the goods we can deliver by appointment - please contact us for options.
- This fencing is delivered as a very large pack. The driver can unload it quickly and easily without assistance. Often the driver can wheel the pack onto a level drive with a hard surface such as tarmac or block paving otherwise the delivery is kerbside. It is not normally possible to deliver the pack into the back garden. The pack is strapped and sealed on delivery but after the pack is opened the individual components are easy to carry.
ENGLAND AND WALES: Delivery is available to any mainland address in England or Wales but prices vary in different areas. You need to enter the first half of your postcode to see the correct prices in your local area. If you have not already done so click here to enter the FIRST HALF of your POSTCODE.
SCOTLAND: Delivery is included to all mainland addresses in DG, EH, FK, G, KA, KY, ML, PA1-19 and TD postcodes. To see the correct prices at any other Scottish address click here to enter the FIRST HALF of your POSTCODE.
OFFSHORE ISLANDS: Delivery is available to the Isle of Wight, the Scottish Islands, the Isle of Man and the Scilly Isles. To see the correct prices click here to enter the FIRST HALF of your POSTCODE.
NORTHERN IRELAND: Delivery is available throughout Northern Ireland. To see the correct prices click here to enter the first half of your BT postcode. Unfortunately we're currently unable to deliver to Northern Ireland due to extra requirements created by Brexit.
REPUBLIC OF IRELAND: Delivery is available throughout the Republic of Ireland. To see the correct prices please select Republic of Ireland as the country and enter the first part of your Eircode postal code e.g. A65. After that you can see all of the products available at the correct prices including delivery throughout the Republic of Ireland. Unfortunately we're currently unable to deliver to Republic of Ireland due to extra requirements created by Brexit.
AM DELIVERY: This low cost option is available at any mainland address in England and Wales. AM delivery is also available in Scotland to mainland address in DG, EH, FK, G, KA, KY, ML, PA1-19 and TD postcodes. The AM delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. If your delivery is outside the specified time the charge will be fully refunded.
SATURDAY AM DELIVERY: This low cost option is available at any mainland address in England or Wales. Saturday AM delivery is also available in Scotland to mainland address in DG, EH, FK, G, KA, KY, ML, PA1-19 and TD postcodes. The Saturday delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. To request delivery on Saturday just email us before 10.00am on Friday.
- All prices include VAT.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Delta, VISA Debit, MasterCard Debit, Electron, Solo, Switch, Maestro and UK Maestro. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.
