Wooden Gazebo 328 - Hipped Roof, Felt Tiles
1
2
3
4
Play Video

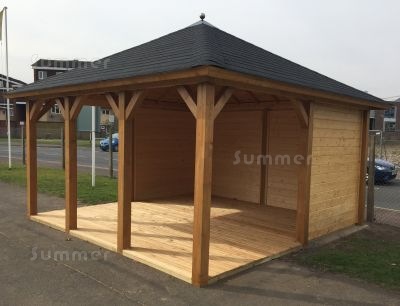

The pictures show the 13'9"x19'8" (4.2x6.0m) gazebo with two decorative part boarded side walls and optional timber floor. Picture 4 shows the optional paint colours available

Summary:

These quality wooden gazebos are available up to 20' (6.0m) wide and up to 14' (4.2m) deep. The sizes range from approximately 8'x8' to 14'x20'. Quality features include substantial 5"x5" posts (120x120mm) and a plain fully boarded rear wall in a choice of 28mm or 45mm wall logs. Options include one or two boarded side walls with either plain fully boarded sides or decorative sides with a mixture of plain boarding and balustrades. The hipped roof features heavy duty timber supports with 19mm thick tongued and grooved boards. The price includes decorative felt tiles in a choice of colours. A heavy duty timber floor is available as an option with durable larch decking boards. These luxury gazebos are ideal for use as a hot tub cover or smoking shelter. Instructions are supplied for self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • Individually made to order. If you choose a non standard design we will contact you before your order is processed to confirm your requirements.
  • Side wall depth up to 13'9" or 4.2m
  • Front wall width up to 19'8" or 6.0m
  • Suitable as a smoking shelter
  • Possible use as a hot tub cover
  • All timber used in the construction of this gazebo originates from sustainable forests
  • Strong 120mm x 120mm posts with angled braces
  • Plain fully boarded rear wall with a choice of 28mm or 45mm thick tongued and grooved wall logs
  • Plain fully boarded walls to rear and sides between 2.4m and 3.0m wide include 2 posts (1 in each corner)
  • Plain fully boarded walls to rear and sides between 3.6m and 6.0m wide include 3 posts (2 corner posts and 1 intermediate post)
  • Decorative part boarded side walls between 2.4m and 3.6m wide include 1 fully boarded panel, 1 balustrade and 3 posts (2 corner posts and 1 intermediate post)
  • Decorative part boarded side walls 4.2m wide include 2 fully boarded panels, 1 balustrade and 4 posts (2 corner posts and 2 intermediate posts)
  • Open walls to front and sides between 2.4m and 3.6m wide include 3 posts (2 corner posts and 1 intermediate post)
  • Open walls to front and sides between 4.2m and 5.4m wide include 4 posts (2 corner posts and 2 intermediate posts)
  • Open walls to front 6.0m wide include 5 posts (2 corner posts and 3 intermediate posts)
  • The roof is supplied unassembled with the rafters and roof boards cut to size
  • 19mm thick tongued and grooved roof boards (finished size after machining)
  • Powder coated metal ridge cover with a decorative chrome finial ball
  • Decorative mineral felt tiles included in a choice of colours
  • Eaves height 7'1" (2150mm)
  • Ridge height varies according to depth of gazebo
  • Ridge height 8'10" or 2700mm (2.4m deep gazebos)
  • Ridge height 9'10" or 3000mm (3.0m deep gazebos)
  • External roof overhang 12" to all sides (300mm)
  • External gazebo depth (side wall) - 2.4m (7'10"), 3.0m (9'10"), 3.6m (11'10") or 4.2m (13'9")
  • External gazebo width (front wall) - 2.4m (7'10"), 3.0m (9'10"), 3.6m (11'10"), 4.2m (13'9"), 4.8m (15'9"), 5.4m (17'9") or 6.0m (19'8")
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sides. The width refers to the fully boarded rear wall. All sizes quoted are the external gazebo sizes and do not include any roof overhang, unless stated otherwise. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
